Talesun BIPRO solar panels standing in an Australian landscape at dusk
Talesunstocked by

Talesun BIPRO, TM3G48M

Built for Australian conditions

Supreme performance. Extreme reliability. High energy for decades. The BIPRO bifacial N-type panel, engineered for Australia and stocked by Solar Juice.

View the panelsEnquire via Solar Juice
  • 450WUp to, power output
  • 22.5%Module efficiency
  • 25 yrProduct warranty
  • 30 yrLinear power warranty
  • Power the Future
  • Built to Last
  • Supreme Performance
  • Engineered for Endurance

Engineered for endurance

Built for Australian conditions

Designed and tested for the most demanding environments. The BIPRO TM3G48M delivers proven reliability through humidity, wind and dust.

  • Heavy rain falling over a coastal solar installation at night

    Proven in high humidity

    An IP68 junction box and a no water-permeability design hold up to heavy rain and coastal moisture.

  • Rows of solar panels in a dusty desert landscape

    Built for dust and sand

    High wear resistance keeps generation steady through dusty, abrasive outback conditions.

  • Palm trees bending in a strong coastal storm

    Engineered for wind

    Withstands heavy mechanical load, plus 5400Pa on the front and minus 2400Pa on the rear, for exposed sites.

  • Solar panels beside the ocean with water droplets on the glass

    Sealed against water

    No water permeability and high wear resistance make it ideal for humid, salty coastal installs.

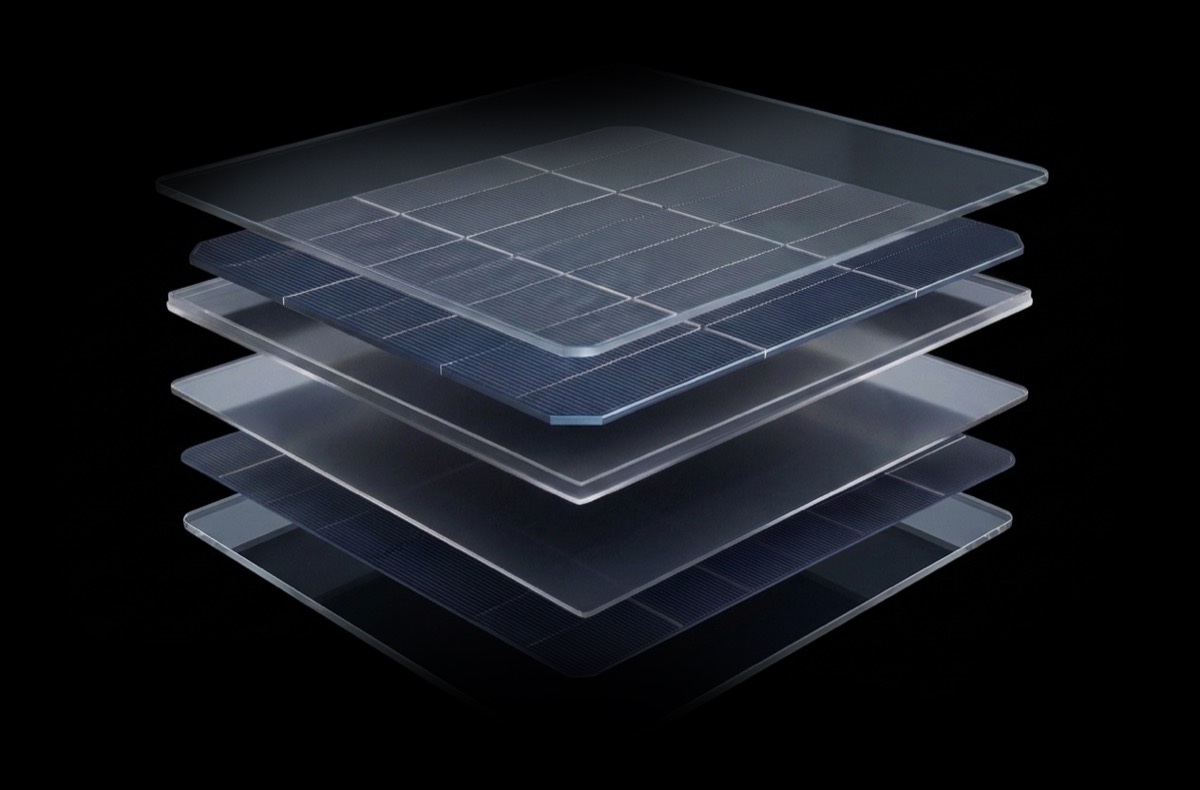

Exploded view of the BIPRO panel layers showing the half-cut N-type cells and glass

More energy, lower LCOE

Next-level performance

Advanced N-type TOPCon bifacial technology, combined with 16BB half-cut cells, delivers superior performance, higher energy yield and greater long-term value.

  • N-type TOPCon cell

    Higher efficiency, lower degradation and better long-term reliability than conventional cells.

  • 16BB half-cut technology

    Lower LID degradation and noticeably better low-light performance, morning and evening.

  • Bifacial design

    Captures additional energy from the rear side, up to 25% extra depending on albedo conditions.

  • Durable construction

    High quality materials and a dual-glass build for a longer, more reliable service life.

  • 22.5%Module efficiency
  • Up to 25%Rear-side power gain

TM3G48M, 430 to 450W

Specifications

BIPRO model430 W435 W440 W445 W450 W
Electrical characteristics (STC)
Maximum power (Pmax)430 W435 W440 W445 W450 W
Operating voltage (Vmpp)28.92 V29.22 V29.52 V29.79 V30.09 V
Operating current (Impp)14.87 A14.89 A14.91 A14.94 A14.96 A
Open-circuit voltage (Voc)34.76 V34.98 V35.20 V35.42 V35.64 V
Short-circuit current (Isc)15.72 A15.76 A15.80 A15.83 A15.86 A
Module efficiency21.50%21.80%22.00%22.30%22.50%
Mechanical characteristics
Cell typeN-type mono-crystalline, 16 busbarN-type mono-crystalline, 16 busbarN-type mono-crystalline, 16 busbarN-type mono-crystalline, 16 busbarN-type mono-crystalline, 16 busbar
Number of cells96 (6 x 16)96 (6 x 16)96 (6 x 16)96 (6 x 16)96 (6 x 16)
Dimensions1762 x 1134 x 30 mm1762 x 1134 x 30 mm1762 x 1134 x 30 mm1762 x 1134 x 30 mm1762 x 1134 x 30 mm
Weight24.7 kg24.7 kg24.7 kg24.7 kg24.7 kg
Front glass2.0mm AR coating, semi-tempered2.0mm AR coating, semi-tempered2.0mm AR coating, semi-tempered2.0mm AR coating, semi-tempered2.0mm AR coating, semi-tempered
FrameAnodised aluminium alloyAnodised aluminium alloyAnodised aluminium alloyAnodised aluminium alloyAnodised aluminium alloy
Junction boxIP68, 3 bypass diodesIP68, 3 bypass diodesIP68, 3 bypass diodesIP68, 3 bypass diodesIP68, 3 bypass diodes
ConnectorsMC4 / MC4-EVO2AMC4 / MC4-EVO2AMC4 / MC4-EVO2AMC4 / MC4-EVO2AMC4 / MC4-EVO2A
Operating temperatureminus 40C to 85Cminus 40C to 85Cminus 40C to 85Cminus 40C to 85Cminus 40C to 85C
Max system voltage1500 V1500 V1500 V1500 V1500 V
Fire ratingClass CClass CClass CClass CClass C

Electrical characteristics (STC)

Maximum power (Pmax)
430 W
Operating voltage (Vmpp)
28.92 V
Operating current (Impp)
14.87 A
Open-circuit voltage (Voc)
34.76 V
Short-circuit current (Isc)
15.72 A
Module efficiency
21.50%

Mechanical characteristics

Cell type
N-type mono-crystalline, 16 busbar
Number of cells
96 (6 x 16)
Dimensions
1762 x 1134 x 30 mm
Weight
24.7 kg
Front glass
2.0mm AR coating, semi-tempered
Frame
Anodised aluminium alloy
Junction box
IP68, 3 bypass diodes
Connectors
MC4 / MC4-EVO2A
Operating temperature
minus 40C to 85C
Max system voltage
1500 V
Fire rating
Class C

30 years of confidence

  • 25 yrQuality assurance
  • 30 yrLinear power warranty
  • ≤ 1%Max first-year degradation
  • ≤ 0.4%Linear degradation per year
  • 87.4%Power retained at year 30

Certified and quality assured

Independently tested and manufactured to international standards, so you can specify with confidence.

  • IEC 61215
  • IEC 61730
  • UL 61730
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • CE
  • DEKRA Type Approved

Available now

Talesun panels from Solar Juice

The BIPRO range, in stock and supported by the Solar Juice wholesale team.

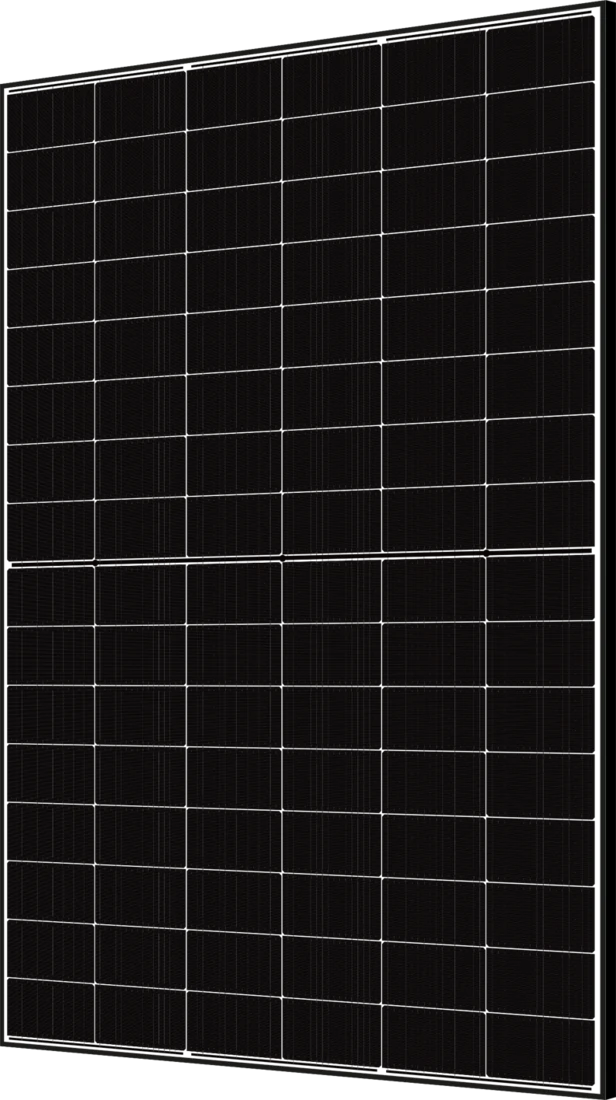

  • Talesun BIPRO 450W all-black bifacial solar panel, front and rear450W

    TM3G48M-450

    Talesun N-type GBC Bifacial 450W All Black

    BIPRO bifacial N-type TOPCon, all-black front, 30mm frame, 1500V, EVO2 connectors, 25-year product warranty.

    • CellN-type TOPCon
    • Efficiency22.5%
    • Warranty25 yr + 30 yr power
    View on Solar JuiceBuy at Solar Outlet
  • Talesun 475W all-black N-type solar panel475W

    TN9C54M(H)-475

    Talesun N-type GBC 475W All Black

    N-type all-black module, 30mm frame, 1500V, EVO2 connectors, 1.4m lead, 25-year product warranty.

    • CellN-type
    • Frame30mm all black
    • Warranty25 yr
    View on Solar JuiceBuy at Solar Outlet
Talesunstocked by

Stocked and supported by Solar Juice

Talk to the Solar Juice team about Talesun BIPRO availability, volume pricing and delivery across Australia.

View Talesun on Solar JuiceContact Solar JuiceEmail an enquiry
